Dependency Injection with Spring

If you are interested in following this post with the actual source code you can clone the project from GitHub

Introduction

Dependency Injection (sometimes referred to as Inversion of Control - IoC) is a design pattern that aims to produce scalable software by decoupling objects. Developers benefit from it because it sets the blueprints for coding software architectures that are: simpler, easier to understand, to modify, and to test.

Dependency Injection (DI) often relies on a container, which is an application in charge to configure all required collaborators that an object relies on by loading information from an external file. An application container can also be implemented by developers as part of a project. However, writing a sophisticated container that is going to be able to read configuration files, parse them and presumably do error checking requires effort and it could be very time consuming work. But luckily, in the last years there have been open source projects that have implemented just that. Among them Spring.

Spring is an open source framework comprised by independent modules (Spring: Core, MVC, AOP and several more..) that aim to address complexity of enterprise development. There's lots to say about Spring really, but in this post we're going to concentrate on its core module; which is the module that provides a DI container that allows developers to easily implement this design pattern without dealing with the implementation details.

Motivation

The term coupling in software development has a negative connotation; essentially because it implies that two objects are tight together.

BookService.java

    public void registerNewBook(Book newBook)
    {
        // Tightly coupled to BookDaoImpl
        BookDaoImpl bookDao = new BookDaoImpl();
        bookDao.save(newBook);
    }

In the previous example we have BookService coupled to BookDaoImpl and severely limits the service capabilities for processing different types of daos. What would happen if tomorrow you want to process different strategies for storing books? i.e using Jdbc or Hibernate? ..No problem! I can always come up with something like this:

BookService.java

    // easy, I've created a new Hibernate implementation!
    // that's all I need!! Right? :/
    BookDaoHibernateImpl bookDao = new BookDaoHibernateImpl();

Fine, that would do the job but clearly this is not a good design. In this case our BookService won't be able to deal with new strategies. Oh well yes!, unless you want to go through the hassle of reflecting those changes across classes (..and in a full blown application that reads HUNDREDS of classes!!), re-test, re-document, recompile and live with the fact that you have a poor designed service and could have saved a lot of work if only you had designed that better.

Reducing Coupling

In order to reduce coupling between classes there are three non-atomic steps that can be performed in a system:

1. Program to interfaces:
2. Dependency Injection:
3. Centralize Configuration:

Implementing Dependency Injection using Spring

Step 1 - Program to an interface: This a very fundamental principle; basically, when defining attribute types as interfaces they'll be abstracted of concrete behaviors allowing to switch implementations at runtime.

Let's say we have two services that interact with each other. We have a BookServiceImpl which is in charge of doing some business logic in the service layer which then communicates with BookDaoImpl which performs database operations in the persistence layer.

BookDaoImpl.java

public class BookDaoImpl implements BookDao
{
    //Following the program to an interface principle
    //we've created a new Interface BookService
    //with a registerNewBook method
    public void save(Book book)
    {
        System.out.println("Saving book: " + book);
    }
}

BookServiceImpl.java

public class BookServiceImpl implements BookService
{
    //Following the program to an interface principle
    //we've created a new Interface BookService
    //with a registerNewBook method
     public void registerNewBook(Book newBook)
    {
        //We can instantiate here any implementer of BookDao
        BookDao bookDao = new BookDaoImpl();
        bookDao.save(newBook);
    }
}

Both classes are coded to interfaces BookDaoImpl and BookServiceImpl now implement BookDao and BookService respectively. An interface will force the implementer to include all methods defined in that interface. By following this principle, we can create new implementations as we like i.e BookDaoHibernateImpl. New implementations will be assigned to the interface type and now you can invoke their methods safely because all the implementer classes are guaranteed to contain the methods defined in the interface.

Step two - Dependency Injection: The idea behind DI is that instead of objects being responsible for instantiating the references they require these references are provided or injected to them. In step one we've gained some flexibility by coding to interfaces. However, BookServiceImpl is still responsible for instantiating BookDaoImpl!!

BookServiceImpl.java

public class BookServiceImpl implements BookService
{
    private BookDao bookDao;

    public void registerNewBook(Book newBook)
    {
        bookDao.save(newBook);
    }

    public void setBookDao(BookDao bookDao)
    {
        this.bookDao = bookDao;
    }
}

We've modified BookServiceImpl to include a BookDao private attribute in which we'll inject a reference using setBookDao(BookDao bookDao) rather than hardcoding it. In that way we can use BookServiceImpl in many different ways, we can set a BookDaoHibernateImpl  a BookDaoJdbcImpl or even more interesting a BookDaoMockImpl to mock the data base for rapid prototyping.

If we want to switch implementations we could create a main class to configure the dependencies (this process is known as "wiring") and see the application working. Notice, that in the main class you can wire dependencies by just instantiating the implementation that you require i.e BookDao bookDao =
new BookDaoMockImpl(); In the next example we've done just that.

Client.java

public class Client
{
    public static void main(String[] args)
    {
        //Create a new book
        Book newBook = new Book("1234",
                "Spring in Action", "Rod Johnson");
        //Create the bookService to process books
        BookServiceImpl bookService = new BookServiceImpl();

        //Plugin any impl you'd like
        BookDao bookDao = new BookDaoMockImpl();
        bookService.setBookDao(bookDao);

        //register the book in the data base
        bookService.registerNewBook(newBook);
    }
}

Step three - Centralize Configuration: A good software development practice is to encapsulate aspects that are likely to vary into a single place. We have partially accomplished that statement. However, a better approach is to define these changes in an external file (of any kind: *.java, *.txt, *.xml etc) and then load them with all the required configuration. This file is what the container will use to configure all the dependencies required by all the objects in the system. Currently, there are several open source implementations of DI containers i.e Google-Guice, PicoContainer, and of course Spring.

Download the Spring framework from the Spring's download website. Make sure to unzip the file and reference the library in the runtime classpath. In Eclipse for example: Right click on the project -> Properties -> Java Build path -> Libraries -> Add jars.

With Spring in place we can start off by declaring the external configuration file. Spring is quite evolved and you can nowadays configure objects (called beans in Spring) in many different ways. But we are going to stick to the most traditional way of doing it which is by using XML. Here's the required xml configuration file for our application:

<!DOCTYPE beans PUBLIC "-//SPRING//DTD BEAN//EN"
        "http://www.springframework.org/dtd/spring-beans.dtd">
<beans>
    <bean id="bookDao" class="dao.BookDaoImpl"/>

    <bean id="bookService" class="service.BookServiceImpl">
        <property name="bookDao" ref="bookDao"/>
    </bean>
</beans>

When using XML as a file configurator you need to define the beans that interact in your system within the tag <beans>. In our example we have two BookDaoImpl and BookServiceImpl  Each entry has a root tag called <bean> where we define the id and the qualified class name. Remember, that we defined an attribute to be set in BookServiceImpl class called bookDao to inject the required references (i.e new BookServiceImpl()or any required implementation ) ? Well,  in order to do that with Spring we define the <property> tag and pass the reference that we require; in this case bookDao which resolves to BookDaoImpl.

The only thing we are missing is to load the bean from our client. So let's create a dummy main class to test this out.

    public static void main(String[] args)
    {
        //Create the Spring container
        ApplicationContext container = new
        ClassPathXmlApplicationContext("spring-config.xml");

        //Create the bookService to process books
        BookService bookService = (BookService)
                container.getBean("bookService");
        //Create a new book
        Book newBook = new Book("1234", "Spring in Action",
                "Rod Johnson");

        //register a new book
        bookService.registerNewBook(newBook);
    }

Where the container object is telling Spring which strategy to use in order to load the configuration file (there are several strategies to load the config file which are not relevant by now) but the important bit here is how to tell Spring which bean is required. And this is done by sending the bean id as a parameter in container.getBean("bookService");. Additionally the container is capable of reaching all kind of objects and therefore we are required to explicitly cast to BookService.

This way of working give us full flexibility of configuring our dependencies, by only doing a single change in a single file. Let's say we have finally implemented BookDaoHibernateImpl, We would only need to change the class attribute in the <bean> tag:

<bean id="bookDao" class="dao.BookDaoHibernateImpl"/>

And BookDaoHibernateImpl or any other BookDao implementation will be injected as a bookDao property in BookServiceImpl without modifying a single line of java code, without recompiling and without retesting.

Conclusion
Dependency Injection is a popular design pattern in the software industry due to it allows to write more scalable, reusable, maintainable, and testable software. By implementing DI software applications become more scalable because objects will be capable of adapting to change faster. By coding to interfaces we can swap required implementations without even touching existing production functionality (..huge gain just by decreasing the risk of letting developers manipulate already tested, documented, and released functionality). Reusability is achieved by having modular objects that can be plugged-in across the application. Better testability because having loosely coupled objects allow developers to write unit tests using mocks; concentrating in units without indirectly testing collaborator dependencies. And finally better maintainability because aspects that are likely to change, (and potentially break existing functionality and introduce new bugs) are concentrated in one single place.

Open Closed Principle

Motivation

A very important consideration when building software is to write code to produce applications which can adapt when new needs or requirements change (.. which for sure they will ) without affecting the rest of the already implemented functionality. Usually, changes in existing code should be minimized since it is assumed that the existing code is already unit tested and that probably it took a long time to get it correct and bug free.

Definition

The open closed principle states that Classes should be open for extension, but closed for modification. The goal of this principle is to allow classes to be easily extended without modifying existing code. Therefore, obtaining designs that are resilient to change and flexible enough to take a new functionality to meet changing requirements.

Example without Open Closed Principle

Let’s say there is a banking application which allows customers to create different types of bank accounts. Below, you can see the class diagram of how this application might look like:

(Click on the image to expand it)

The Account class handles different transactions that a customer might execute depending on his type of account. For example, saving accounts holders allow only withdrawals until the balance is €0.00 but giro accounts provide a credit of €500.00. So the developer writes some code that determines the appropriate type of account and then goes about doing the withdrawals:

   public Account (String name, String type)
{
    /* This code is NOT closed for modification
         * if new Accounts are introduced or removed
         * we have to get into this code and modify it
         *
         * Bad Times!! :( */

this.type = type;
this.name = name;

if(type.equals("Giro Account"))
withdrawGiroAccount(amount);
else if(type.equals("Saving Account"))
withdrawSavingAccount(amount);
else if(type.equals("Personal Account"))
withdrawPersonalAccount(amount);

}

When you write code like this, you are looking for trouble because you know when it comes time for changes or extensions, you will have to reopen this code and examine what needs to be added or deleted. Often, this kind of code ends up in several parts of the application making maintenance and updates more difficult and error prone.

Clearly, dealing with which concrete class is required is really messing up our Account class and preventing it from being closed for modification. But now that we know that we want the Account class to remain untouched it is time to apply the principle.

Example with Open Closed Principle

The class diagram below shows how this application will be design.

(Click on the image to expand it)

First, we have a client class which will be in charge to create accounts. For this example is just a simple Java class which makes instances of giro, saving or any other type added in the future.

public class AccountTest
{
public static void main(String args[])
{

AccountType giroAccount = new GiroAccount();
AccountType savingAccount = new SavingAccount();

Account account1 = new Account("Cipriano's Account", giroAccount);
Account account2 = new Account("Desiree's Account", savingAccount);

System.out.println("\nTransactions for Cipriano's account");

System.out.println(account1.deposit(1000));
System.out.println(account1.withdraw(4000));
System.out.println(account1.withdraw(3000));
System.out.println(account1.withdraw(1000));

System.out.println("\nTransactions for Desiree's account");
System.out.println(account2.deposit(3000));
System.out.println(account2.withdraw(2000));
System.out.println(account2.withdraw(2000));          }

}
}

We define our Account class, and a constructor which will receive as parameters the owner of the account and the AccountType. Notice that the correct transaction is executed by help of polymorphism since all the new type of accounts will be a subtype of AccountTypes. When we create Account objects in AccountTest we are passing a concrete reference of AccountType (i.e SavingAccount, GiroAccout, etc..) to Account therefore, it will know what kind of transaction execute.

public class Account  {

private AccountType account;
private float amount;

public Account (String name, AccountType type) {
this.account = type;
this.account.setName(name);
}

public String deposit(float amount){
return account.deposit(amount);
}
public String withdraw(float amount){
return account.withdraw(amount);
}
public void setAmount(float amount){
this.amount = amount;
}
public float getAmount(){
return account.getAmount();
}
public String toString(){
return account.getName() + " : " +
account.getAmount() + "€";
}
}

Now is time to define AccountType which will be an abstract superclass of all the new different types of required accounts. It will provide shared common design but it will delegate the withdrawal implementation to concrete classes. It is in here where we are able to create new functionality of accounts without breaking the existing Account implementation. Thus, we will be able to add as many account types with different kind of withdrawal behaviors without even touching the Account class achieving like that the what the Open Closed Principle states. Account will be closed but new types of account might be open to extension providing new implementations of the abstract String withdraw(float amount).

public abstract class AccountType
{
private float amount = 0;
private String name;

public AccountType(){}

public AccountType(String name){
this.name = name;
}

public void setName(String name) {
this.name = name;
}

public String getName(){
return this.name;
}

public void setAmount(float amount) {
this.amount = amount;
}

public float getAmount(){
return amount;
}

public String deposit(float amount){
float current = getAmount();
setAmount(current + amount);

String result = "deposited " + amount + "€" ;
result = result +  " for " + getName();
result = result +  "\ncurrent balance is: " +
getAmount() + "€";
return result;
}

public abstract String withdraw (float amount);

}

Finally we add our concrete account type classes with their respective withdraw implementations.

public class GiroAccount extends AccountType {

public static final float OVER_DRAFT_LIMIT = 5000f;

public GiroAccount() {
}

public GiroAccount(String name) {
super(name);
}

public String withdraw(float amount) {
float current = getAmount();
float withdrawal;

if (current - amount >= -OVER_DRAFT_LIMIT)
withdrawal = amount;
else
withdrawal = OVER_DRAFT_LIMIT + current;

setAmount(current - withdrawal);

String result = "withdrawn " + withdrawal + "€";
result = result + " from " + getName();
result = result + "\ncurrent balance is: " + getAmount() + "€";

return result;
}

@Override
public String toString() {
return "GiroAccount";
}
}

public class SavingAccount extends AccountType {

public SavingAccount(){}
public SavingAccount(String name){
super(name);
}

@Override
public String withdraw(float amount) {
float current = this.getAmount();
float withdrawal = 0;
String result="";
if(current - amount >= 0){
withdrawal = amount;
setAmount(current - withdrawal);
result = "withdrawn " + withdrawal + "€" ;
result = result +  " from " + getName();
result = result +  "\ncurrent balance is: " +
getAmount() + "€";
}
else
result = "Insuficient money available";

return result;
}

@Override
public String toString(){
return "SavingAccount";
}
}

Conclusion

The Open Closed Principle is a useful software design consideration when it comes to writing maintainable code and might be used to design applications in which requirements are likely to change. There are many design patterns that allow developers to write extendable code without changing existing implementation. For example the Factory pattern, the Decorator pattern or the Observer pattern.

Be careful when choosing the areas of code that need to be extended; making a flexible design sometimes involves additional complexities and effort. Applying the Open Closed Principle everywhere can lead to complex, hard to understand code.

AES ECB basic implementation

The AES algorithm can be implemented following strictly the AES round steps described in my previous post or by using pre-computed lookup tables. This post describes an AES implementation which follows the AES round steps and is based on existing source code developed by karl malbrain. It is written in a very modular way, making it ideal to get to know the algorithm without getting confused by the usage of look up tables. However, this version is aimed to understand the process and has no focus at all in performance optimization. As well the implementation is used to have a starting point to demonstrate how different levels of performance benefits can be achieved by using a modified version of the algorithm. From now on we will refer to this version as AES-B which stands for AES Basic implementation.

Let’s first describe a high level pseudo code of the algorithm:

- Generate AES expanded key
- XOR input data with encryption key
- For Rounds = 1 To NrRounds
- - SubBytes operation
- - ShifRows operations
- - If Rounds < NrRounds
- - - MixColumns Operation
- - XOR with round key k[Rounds]
- copy result to output

As we can see on the previous pseudo code the AES-B algorithm follows the AES round steps described. This makes it easier to understand its functionality. First, we generate the expanded key or key schedule which basically takes the cipher key and performs the key schedule operation to determine the number of round keys necessary to encrypt the data. The number of round keys necessary to encrypt one block of information is related to the key length. In this example we are using a 128 bits key; therefore it will require in total 11 round keys, 1 for the initial round, 9 for standard rounds and 1 for the final round. After we expand the key, the input data is XORed which is basically the AddRoundKey operation for the initial round, followed by the execution of SubBytes, ShiftRows and MixCulumns operations. Note that these 3 operations will be executed only for the first 9 main rounds and when we reach the 10^th round we exclude the MixColumns operation as described on previous posts.

Now let’s take a look of how to implement AES in C, if you are going to copy this code make sure you download Malbrain's implementation and reference it from your application.

// GLOBAL CONSTANTS
// --------------------------------------
//File name that contains the data to be encrypted
static const char *filename = "input.txt";

// INCLUDES
// --------------------------------------
#include <time.h>
#include <math.h>
#include <stdio.h>
#include <string.h>

// DEFINES
// --------------------------------------
// Amount of encryption tasks to perform
#define ITERATIONS  1

// AES Block size is 128 bits or 16 Bytes
#define AES_BLOCK_SIZE 16

// Amount of columns in the state. AES defines always 4 because it
//always encrypts 128 bit blocks. However, Rijndael can define more
#define STATE_COLUMNS 4

// Amount of AES rounds to execute depending on the key length
#define ROUNDS 10

// 1024 Bytes is the default start value when checking throughputs
#define START_VALUE 1024

//Assert used to compare encryption outputs against NIST Test Vectors
#define assert(x) if(!(x)){
printf ("\nGeneric assert " #x " has thrown an error\n");
}

double cpuEncrypt(char* in, int in_len, char* key, char* out)
{
  int i;
unsigned char expkey[4 * STATE_COLUMNS * (ROUNDS + 1)];
clock_t start, end;

  //Expand the key and store in key
ExpandKey (key, expkey);

start = clock();

  for ( i = 0; i < in_len; i+=16 )
Encrypt( in+i, expkey, out+i );

end = clock();

  return (end-start) / (double)CLOCKS_PER_SEC;
}

static void test_vectors()
{
   int i = 0;
   //NIST Test Vectors AES 128
   //The following link contains the test vectors used below to guarantee
   //that the functionality of the algorithm hast not been modified
   //http://csrc.nist.gov/publications/nistpubs/800-38a/sp800-38a.pdf
unsigned char testPlainText[]  = {0x50, 0x68, 0x12, 0xA4, 0x5F, 0x08,
0xC8, 0x89, 0xB9, 0x7F, 0x59, 0x80, 0x03, 0x8B, 0x83, 0x59};
unsigned char testKeyText[] =  {0x00, 0x01, 0x02, 0x03, 0x05, 0x06,
0x07, 0x08, 0x0A, 0x0B, 0x0C, 0x0D, 0x0F, 0x10, 0x11, 0x12};
unsigned char testCipherText[] = {0xD8, 0xF5, 0x32, 0x53, 0x82, 0x89,
0xEF, 0x7D, 0x06, 0xB5, 0x06, 0xA4, 0xFD, 0x5B, 0xE9, 0xC9};

unsigned char out[16] = {0x0};

   //Display plaintext to the user
printf("\n  PlaintText: ");
   for ( i = 0; i < AES_BLOCK_SIZE; i++)
printf("%x", testPlainText[i]);
printf("\n");

   //Display key to the user
printf("\  Key: ");
   for ( i = 0; i < AES_BLOCK_SIZE; i++)
printf("%x", testKeyText[i]);
printf("\n");

   //Display ciphertext to the user
printf("\  CipherText: ");
   for ( i = 0; i < AES_BLOCK_SIZE; i++)
printf("%x", testCipherText[i]);
printf("\n");

   // Test encryption with OpenSSL
cpuEncrypt (testPlainText,  sizeof(testPlainText), testKeyText, out);

   //Display encrypted data
printf("\n  CPU Encryption: ");
   for (i = 0; i < AES_BLOCK_SIZE; i++)
printf("%x", out[i]);

   //Assert that the encrypted output is the same as the
   //NIST testCipherText vector
assert (memcmp (out, testCipherText, 16) == 0);
}

static double check_throughtputs ()
{
   //Determines the amount of data to encrypt
   int i, size;
size_t bytes_read;
   double timer;

   //Pointer to the file were the data to be process is located
FILE *file_input;

   //Pointer to the input buffer, will hold the data read from the file
   char *input_data;

   //Pointer to the output buffer which will hold the encrypted data
   char *output_data;
   int fileSize;

  //AES 128 Bit Key
unsigned char ckey[] = {0x00, 0x01, 0x02, 0x03, 0x05,
0x06, 0x07, 0x08, 0x0A, 0x0B, 0x0C, 0x0D, 0x0F, 0x10, 0x11, 0x12};

   // Read the file into memory
file_input = fopen (filename, "rb");
fseek(file_input, 0, SEEK_END);
fileSize = ftell(file_input);
fseek(file_input, 0, SEEK_SET);

   //Allocate memory for the inputa and output
   //data depending on the file size
input_data  = (char*)calloc (fileSize, sizeof(char));
output_data = (char*)calloc (fileSize, sizeof(char));

   // It is important to know that the last 128 bit block
   // to be encrypted can contain less than 128 bits to a
   // for this test purpose input lenght is always aligned
   // multiple of AES block size otherwise padding has to be implemented
bytes_read = fread (input_data, sizeof(char), fileSize, file_input);
fclose (file_input);
bytes_read = (int)(ceil (bytes_read / 16.0) * 16);

printf("\n%16s%16s%20s\n", "Total KB", "Seconds", "Throughput Mbps");

   //Increment the data size to be encrpted by 2 starting with until
   //the end of the file is reached
   for ( size = START_VALUE; size <= fileSize ; size *= 2 )
{
timer = 0.0;
      for ( i = 0; i < ITERATIONS; ++i ){
   timer += cpuEncrypt (input_data,  size, ckey, output_data);
}

printf ("%16i%16.3f%16.3f\n", size/1024, timer,
(size*8.0/(1024*1024))/ timer);
}

printf ("\t\n--------------------------------------------------\n");

   //Free resources
free (input_data);
free (output_data);

   return timer;
}

static void run_cipher(){
printf ("\nAES 128 Bit key");
printf ("\t\nNIST Test Vectors: ");
printf ("\t\n--------------------------------------------------");
test_vectors();
printf ("\n  Test status: Passed\n");

printf ("\t\nAES on CPU Throughputs: ");
printf ("\t\n--------------------------------------------------");
check_throughtputs();
}

int main(int argc, char *argv[]){
run_cipher();
system("PAUSE");
   return 0;
}

First, we execute a correctness test, it is performed to ensure that the algorithm’s functionality was not altered. This test takes a known plaintext and key, and gives back a known cipher text taken from the test vectors provided by the National Institute of Standards and Technology (NIST). After correctness is verified, the a 256MB file is loaded, the encryption takes place and the performance is evaluated. Remember that to be able to encrypt undetermined file sizes, it is necessary to split the data into 128 bit chunks so the data can be processed; this happens in the cpuEncryptmethod. For a better understanding, we encrypt different amount of data; starting with 1KB and duplicating the amount per iteration until the whole size of the file is reached 262144KB (256MB). Each iteration prints the time it takes to process its respective amount of data so we can have an overview of how heavy the operation executing might be. The following picture shows the results obtained when running the application:

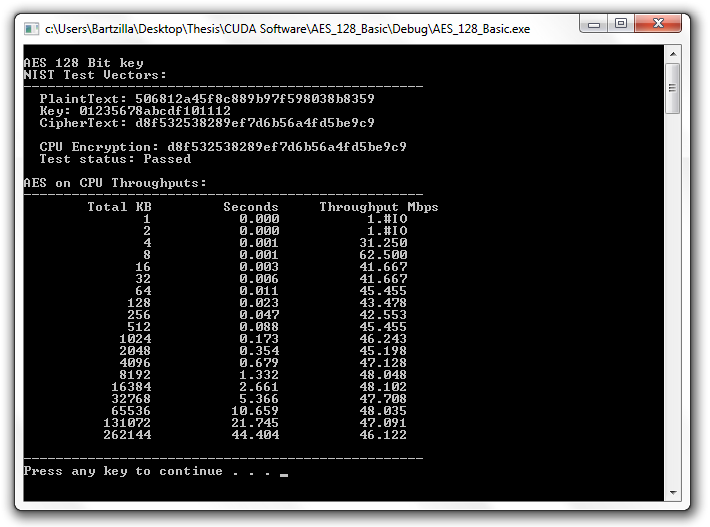

Throughputs obtained when encrypting a 256MB file on AES-B [click to enlarge]

As it can be seen, the encryption test outputs the expected cipher text proposed by NIST, so we can be sure that the algorithm’s functionality is correct. The output shows a linear behavior, executing in average 45Mbps; this is due to the intensive computation the processor has to go through to encrypt the data. Remember this algorithm does not make heavy usage of pre-calculated look up tables to skip arithmetic, so nearly every single value required through the AES process has to be calculated, hence consuming all the CPU resources and eventually creating a bottleneck that won’t let the CPU process at a faster rate.

Typically applications that require encryption/decryption processing need a lot of computing power and processes can take hours to complete, slow down applications or require databases to be offline, and many times this is unacceptable for 24x7 high available systems. In that way encryption/decryption processes must be done as fast as possible to avoid unwanted downtimes. OpenSSL is a cryptographic framework which provides different cipher implementations, among them AES. OpenSSL implements and improved version of the AES algorithm which relies on pre-calculated look up tables to skip arithmetic and relief sthe processor of many of its intensive operations improving considerably the performance obtained when encrypting/decrypting data. In future posts I will be showing how to encrypt using the AES algorithm implemented on AES, as well as comparing the throughputs achieved when using this library.
